Make Loading Safer, Faster, and Easier

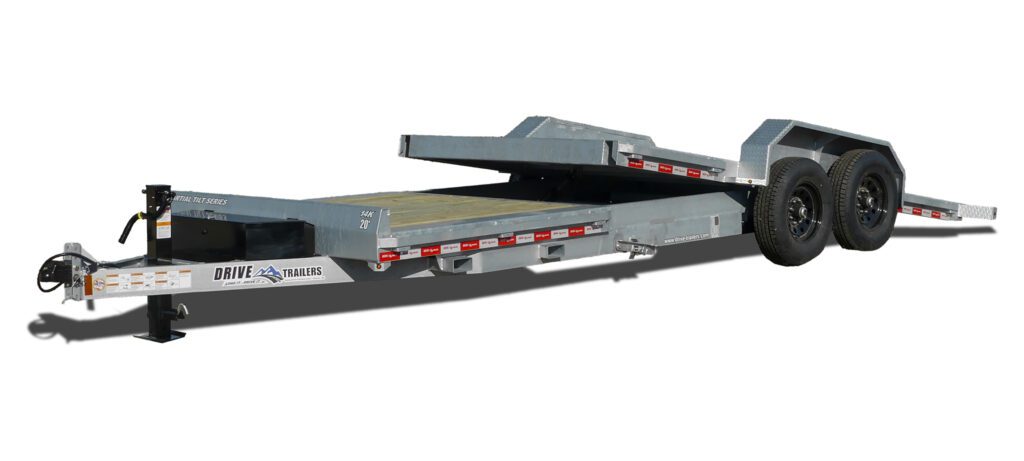

Make loading safer, faster, and easier with the Partial Tilt Series. The Stillwell hydraulic lock valve provides the operator the ability to lock the deck in position for loading and offloading. Featuring a stationary front deck paired with a gravity tilt rear, this trailer removes the need for ramps. It’s a smart solution for skid steers, compact loaders, and low-clearance equipment. With fewer moving parts and a reinforced C-channel frame, it’s built for tough jobs and repeated loading.
The deck includes 2-inch prowood decking, a 24-inch tapered tail with traction bars, and corner tie-downs for added control. Fully integrated rub rail tie-downs, stake pockets, and recessed D-rings keep your equipment secure. Supported by 7,000-pound slipper spring axles and a 15,000-pound drop-leg jack, this trailer is made to perform on and off the jobsite.
Partial Tilt Series Details
- Main Frame: 6” C-Channel with 3” C-Channel Cross Members
- Hitch Frame: 6” C-Channel with Fork Pockets
- Axles: 7,000 lb. Slipper Springs with Greasable Pins and Equalizer
- Colors: Standard in Black or upgrade to Galvanized; Custom Colors Available Upon Request
- Wheels: P235/80-16 on Black Modular Rims 8 bolt on 6” pattern
- Tapered Tail: 24” Wide with 3/16” Deck Plate, Corner Tie Downs, and Traction Bars
- Stillwell Hydraulic Lock Valve: 24” Wide with 3/16” Angle Cross Members
- Deck Lock: Stillwell Hydraulic Lock Valve
- Deck: 2” Prowood Decking
- Tie Downs: Fully Integrated Rub Rail with Tie-Down Capability, Stake Pockets, and Recessed Ramp D-Rings
- Jack: 15,000 lb Spring Loaded, Drop Leg
20’ Partial Tilt Trailer
- 102″ wide x 20′ (14′ + 6′) Long Bed
- 14,000 GVWR
- Brakes
22’ Partial Tilt Trailer
- 102″ wide x 22′ (16′ + 6′) Long Bed
- 14,000 GVWR
- Brakes
24’ Partial Tilt Trailer
- 102″ wide x 24′ (18′ + 6′) Long Bed
- 14,000 GVWR
- Brakes
26’ Partial Tilt Trailer
- 26′ Partial Tilt Trailer
102″ wide x 20′ (20′ + 6′) Long Bed
14,000 GVWR
Brakes
Features
- Purpose-Built Design – Engineered for what you need to haul
- Durable Finish Options – Powder-coat standard (Black) or hot-dip galvanized frame
- Bright & Protected Lighting – LED lights with sealed wiring harness
- Equipped for Safety – Brakes on all axles
- Customizable to Your Needs – Options include multiple widths, axle combinations, and ramp heights
