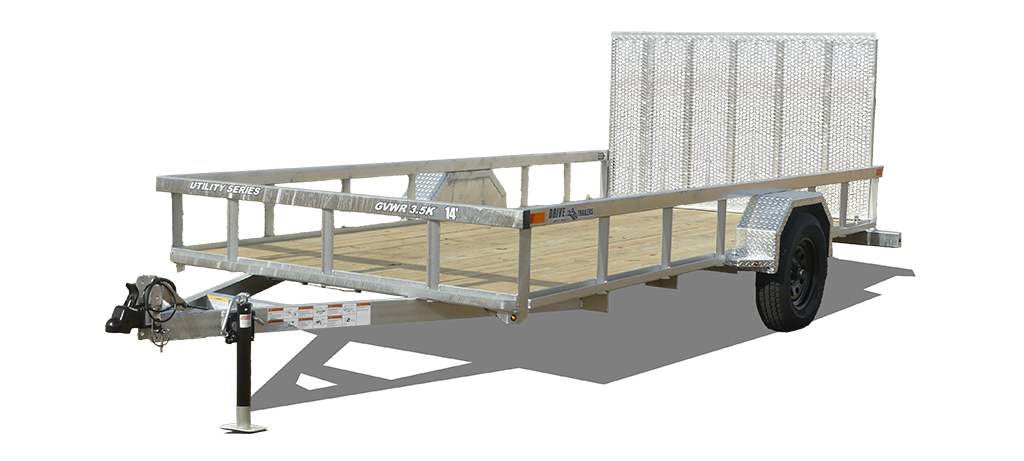

Versatile and Reliable Hauling
The Single Axle Utility Series is a reliable, easy-to-tow solution for everyday hauling. Designed for homeowners, landscapers, and light commercial use, it’s ideal for moving tools, mowers, ATVs, and more. A 3,500 lb spring axle provides smooth handling, while the compact design makes it easy to maneuver and store.
Built with a 3″ x 2″ angle iron main frame and 2″ x 4″ tubing perimeter, the trailer features a pressure-treated wood deck with a steel plate over the tires for added durability. A 48-inch fold-down ramp comes standard, with optional ramp heights available.
Single Axle Utility Series Details
- Main Frame: 3” x 2” x 3/16” Angle Iron
- Perimeter Frame: 2” x 4” Rectangular Tubing
- Axles: 3,500 lb Spring Axles with Equalizer
- Wheels: P205/75R15 LR C Tires on Black Modular Rims (for 3,500 lb axles)
- Colors: Standard in Black or upgrade to Galvanized; Custom Colors Available Upon Request
- Ramps: 48” Fold-Down (Standard); Optional 16” and 32” Heights Available
- Deck: 2” Prowood Decking with 14-gauge Steel Deck Plate over Tires
- Tie Downs: Integrated Rub Rail with Tie-Down Capability
- Jack: 3,000 lb Top-Wind Jack
10’ Utility Trailer
- 7′ wide x 10′ Long Bed (Available in 6′ width)
- 3,500lbs GVWR
- No Brakes
12’ Utility Trailer
- 7′ wide x 12′ Long Bed (Available in 6′ width)
- 3,500lbs GVWR
- No Brakes
14’ Utility Trailer
- 7′ wide x 14′ Long Bed (Available in 6′ width)
- 3,500lbs GVWR
- No Brakes
Features
- Purpose-Built Design – Engineered for what you need to haul
- Durable Finish Options – Powder-coat standard (Black) or hot-dip galvanized frame
- Bright & Protected Lighting – LED lights with sealed wiring harness
- Equipped for Safety – Brakes on all axles (if equipped)
- Customizable to Your Needs – Options include multiple widths, axle combinations, and heavy duty package, multiple widths, and ramp heights
- Popular options – toolbox, spare tire mount, spare wheel & tire
