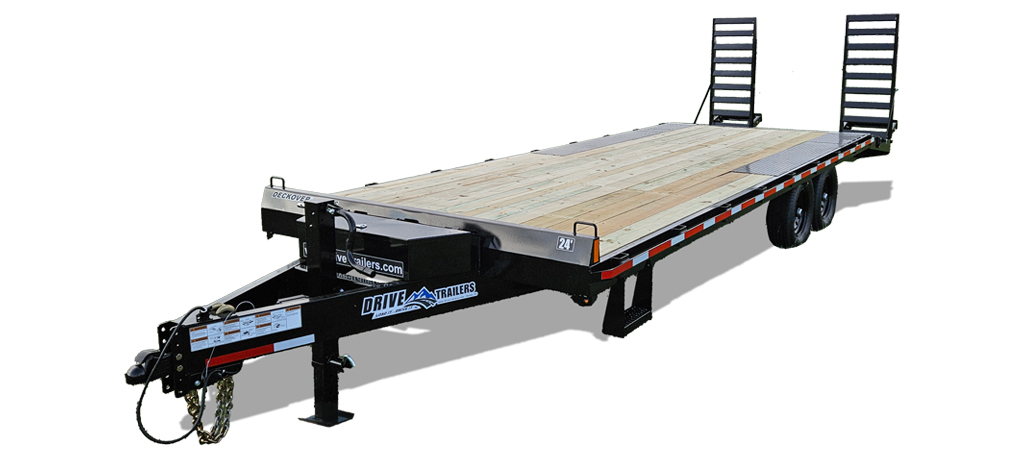

Wide-Load Deck Over Trailers
When you need full access to your trailer’s width, the Deck Over Series delivers. With no fenders in the way, it is ideal for hauling pallets, wide equipment, and oversized materials. Designed for jobsite versatility and long-term performance, this series features an 8-inch C-channel main frame with 6-inch cross members, built to handle heavy, uneven loads with ease.
The 2-inch prowood deck includes 14-gauge steel plating over the tires for added durability in high-traffic areas. Standard 24-inch wide ramps with 3/16-inch angle cross members provide stable loading, while integrated rub rail tie-downs, stake pockets, and recessed ramp D-rings secure your cargo. Backed by 7,000 lb slipper spring axles and a 15,000 lb drop-leg jack, this trailer is built to keep up with the demands of your day.
Deck Over Series Details
- Main Frame: 8” C-Channel with 6” C-Channel Cross Members
- Hitch Frame: 6” C-Channel with 3” C-Channel Cross Members
- Axles: 7,000 lb. Slipper Springs with Greasable Pins and Equalizer
- Colors: Standard in Black or upgrade to Galvanized; Custom Colors Available Upon Request
- Wheels: P235/80-16 on Black Modular Rims 8 bolt on 6” pattern
- Ramps: 24” Wide with 3/16” Angle Cross Members
- Deck: 2” Prowood Decking with 14-gauge Steel Deck Plate over the tires
- Tie Downs: Fully Integrated Rub Rail with Tie-Down Capability, Stake Pockets, and Recessed Ramp D-Rings
- Jack: 12,000 lb Spring Loaded, Drop Leg
22’ Deck Over Trailer
- 102″ w X 22′ Long Bed
- GVWR 14,000 lbs.
- Brakes
24’ Deck Over Trailer
- 102″ w X 24′ Long Bed
- GVWR 14,000 lbs.
- Brakes
Features
- Purpose-Built Design – Engineered for what you need to haul
- Durable Finish Options – Powder-coat standard (Black) or hot-dip galvanized frame
- Bright & Protected Lighting – LED lights with sealed wiring harness
- Equipped for Safety – Brakes on all axles
- Customizable to Your Needs – Options include multiple widths, axle combinations, and ramp heights
